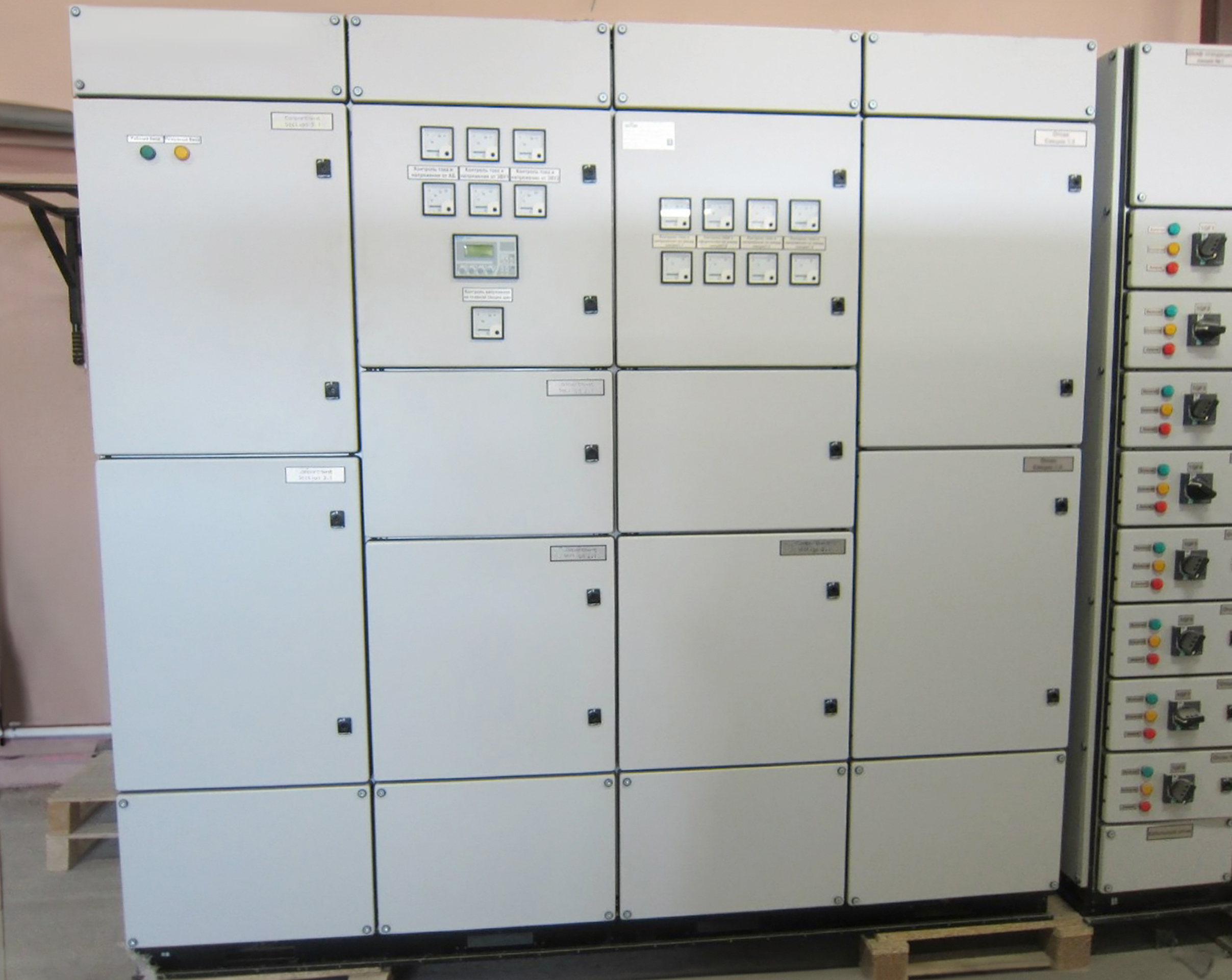

MRCCS provides a range of solutions including Low Voltage Switchboards, Switchgear, and Distribution Boards
Our low voltage switchgear systems are meticulously engineered to ensure the secure, effective, and dependable distribution of electrical power, operating at voltages of up to 1,000 volts, currents reaching 6,300 amps and carrying a rating of 100kA RMS Sym/s. Our products hold complete certification according to the European product standard BS EN61439-2.
Cutting-edge MCCB, ACB, and switch fuse units are incorporated into the construction of our specialised LV switchboards, sourced from industry leaders like Schneider and ABB or a fully bespoke construction. These switchboards come in a variety of configurations, catering to diverse specifications that accommodate both top and bottom cable access, as well as options for front or rear entry.
Adapting to site-specific requirements, we offer customisation options for Switchboard dimensions, layouts, colours, and access points. Our range extends to bespoke solutions for Switchboards and Distribution Boards, catering to unique needs such as CT-based metering, generator changeover protection systems, and power factor correction. Complementing our LV distribution switchboards are wall-mounted distribution board choices, including the Schneider Acti9 Series, Dorman Smith Loadlimiter 63 Series, and Terasaki PRO-DB/Pro Panel Series
Supplying high quality, tailor-made low voltage distribution switchboards adhering to internationally recognised benchmarks like IEC61439 or its equivalents is our expertise. As a neutral vendor, MRCCS has the ability to procure equipment from any supplier to create customised LV switchgear that aligns with your specifications.
Our Partners
Over the years, we have cultivated enduring relationships with our esteemed partners, with whom we have collaborated on numerous successful ventures.
Modular Approach
Our approach involves a modular design that flexibly adapts to your specific application and site needs. From a 630A modular switchboard to a uniquely designed 6300A ASTA certified switchboard, we have the right solution for every requirement. With the adaptable and modular design inherent in modern LV switchgear, our engineers have the capability to reshape and reconstruct equipment from our inventory. This ensures a perfect fit for your specific site, application, and protection prerequisites.
Safety and Testing
Our dedication to innovation and the rigorous testing of ASTA Type Testing are evident in the superb quality of our final products. Each switchboard is carefully crafted to meet precise specifications, with a strong emphasis on safety. Safety features are seamlessly integrated into every unit, from protective coverings on both the live and load sides of every switch to metallic barriers strategically placed between compartments. These measures are implemented to prevent, safeguard, and isolate live components effectively.
Applications
- Treatment Plant Power Distribution
- Storm Water Pump Stations
- Wastewater Lift Stations
- Water Pumping Stations
- Power Distribution
- EV Charging Station Distribution
- Commercial Buildings and Headquarters
Applications
- Treatment Plant Power Distribution
- Storm Water Pump Stations
- Wastewater Lift Stations
- Water Pumping Stations
- Power Distribution
- EV Charging Station Distribution
- Commercial Buildings and Headquarters
Technical Specification
- Forms of separation which typically include 2, 3 & 4, Types 2 to 7 Construction with individual motor starter sections up to Form 4.
- Compliant with BS EN 61439/UKCA
- Certified Busbar Current ratings from 125A to 6300A Construction in fully draw out (Multi Drawer), Plug-in or Fixed version.
- ASTA - KEMA - DECRA certified Fault ratings - 20KA/1 second, 50KA/1 second, 50KA/3 seconds, 80KA/1 second
- Ingress Protection to IP65
- Intelligent and conventional designs including touchscreen HMI - Completely free choice of electrical components.
- Free choice regarding height, width and depth.
- Configurations – straight/in-line, rectangular, back-to-back, “L”, “T” and “U” shape
- Construction - fully welded bespoke or welded frame modular in mild steel, and stainless steel, 2mm thick.
- Arc Fault Containment to IEC 61641
- Rear and front access with full height cableways
- Top and bottom cable entry
- Paint – powder coating in RAL and BS colours
- Power factor correction systems
- Harmonic filtration systems
- REC CT Chambers tailored to various specifications, addressing your unique requirements
- Accommodate fixed or withdrawable ACBs, MCCBs, fuse-switches, circuit breakers, and integrated PFC seamlessly
- A comprehensive range of components from key manufacturers like Schneider, Terasaki, ABB, and Siemens
- Choose from MID Approved Metering solutions for accuracy and compliance
- Opt for type-tested alternatives, allowing double stacking of ACBs, high-density MCCB stacking, and reduced-height switchboards
