MRCCS: Empowering Industries with Precision-Crafted Motor Control Centres

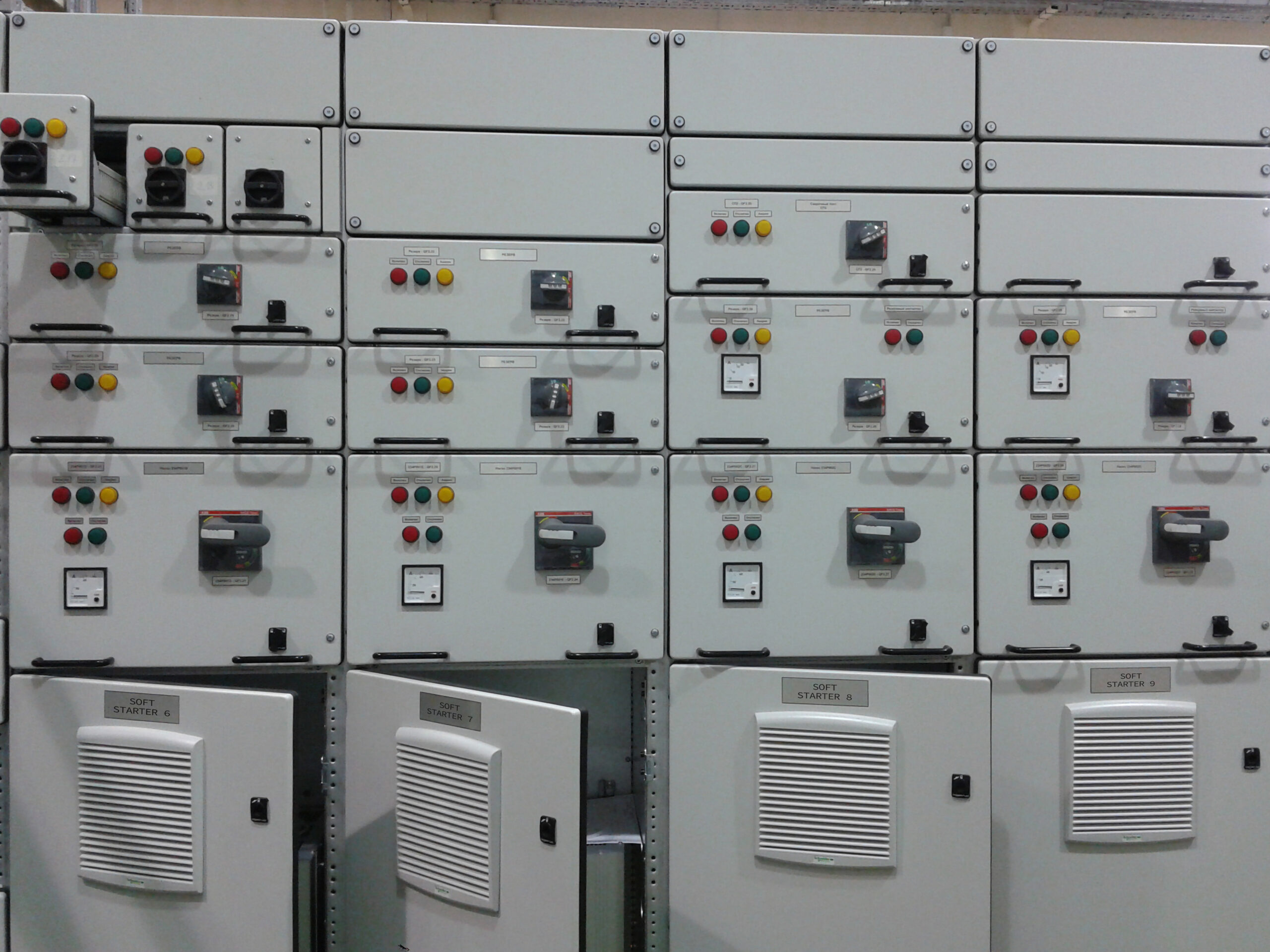

In both commercial and industrial settings, the demand for centralised control of electric motors to operate plant and equipment with unparalleled efficiency remains paramount. To harness their potential, a centralised approach becomes imperative, and this is where our Motor Control Centers (MCCs) come into play.
For over two decades, our expertise has transcended borders, empowering installations regionally and across multiple industries. A profound association with numerous UK Water Companies has sharpened our proficiency, making us fully prepared to embrace AMP7 (2020-2025) and its transformative opportunities.
Embracing cutting-edge smart technology, motor control centres now offer enhanced safety and efficiency. Leveraging state-of-the-art monitoring tech, our premium motor controllers mitigate electrical shock risks and prevent internal arcing faults during maintenance.
Focus of Separation
The act of separation serves various objectives, offering numerous advantages. By granting access to specific assembly parts while keeping others operational, it ensures safeguarding against live parts in neighboring functional units and prevents the migration of foreign entities between units.
Modular
Our ModularX range introduces a versatile collection of pre-designed and pre-tested builds, centered around a fully welded frame that houses removable and reconfigurable functional units.
In sectors characterised by constant wear or frequent line changes, the modular approach offers unparalleled flexibility in managing through-life alterations, enhancing efficiency, minimising redundancy, and extending operational life. Embracing an MRCCS modular solution ensures a meticulously designed and tailored switchboard that aligns with real-world conditions, significantly curbing the risk of costly downtime.
Full versatility
MRCCS takes pride in its comprehensive range of switchboard enclosure solutions, all thoughtfully designed and constructed with motor starter sections, adhering to the Modular System. This unique approach grants unparalleled freedom, allowing for customisable heights, widths, and depths of the solution, while providing the freedom to choose from a wide array of electrical components.
Bespoke
Tailored to individual needs, bespoke assemblies embrace the freedom to be meticulously designed and built in adherence to BS 61439 constraints. This enables the fulfillment of precise performance requirements, seamless integration into available spaces, extension of existing equipment, and amalgamation of diverse systems and technologies from multiple providers.
Leveraging our expertise, MRCCS has triumphed in delivering tailor-made schemes that empower customers to repurpose and preserve existing buldings, circumventing substantial capital expenditures for new constructions and plant relocation. With a diverse array of auxiliary options, our motor control centres excel, while our capability to craft sub-floor plinths with height-adjustable features further adds to our manufacturing capabilities.
Technical Specification
- Forms of separation which typically include 2, 3 & 4, Types 2 to 7 Construction with individual motor starter sections up to Form 4.
- Compliant with BS EN 61439/UKCA
- Certified Busbar Current ratings from 125A to 6300A Construction in fully draw out (Multi Drawer), Plug-in or Fixed version.
- ASTA - KEMA - DECRA certified Fault ratings - 20KA/1 second, 50KA/1 second, 50KA/3 seconds, 80KA/1 second
- Ingress Protection to IP65
- Intelligent and conventional designs including touchscreen HMI Completely free choice of electrical components.
- Free choice regarding height, width and depth.
- Configurations – straight/in-line, rectangular, back-to-back, “L”, “T” and “U” shape
- Construction - fully welded bespoke or welded frame modular in mild steel, and stainless steel, 2mm thick.
- Arc Fault Containment to IEC 61641
- Rear and front access with full height cableways
- Top and bottom cable entry
- Paint – powder coating in RAL and BS colours
- Power factor correction systems
- Harmonic filtration systems
- Option to integrate and extend existing MCCs
- Compliance with WIMES Specifications
